Construction and optional painting

The PS kit includes red-plated shell parts, clear blue effects and marking stickers. Trim the marked under gates carefully. The manual warns that rubbing or solvents can remove the plating, so take care when painting and panel lining around those parts.

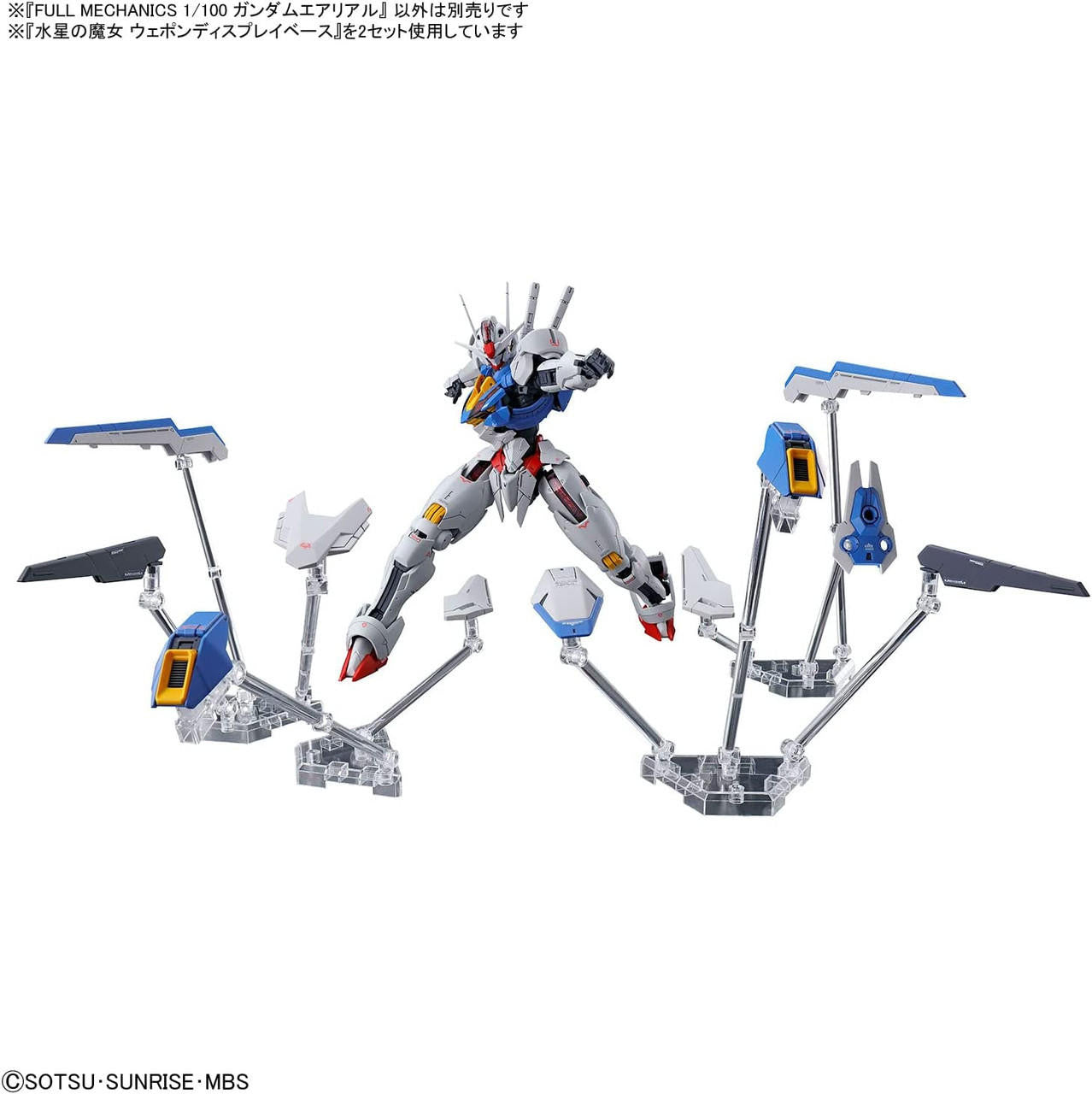

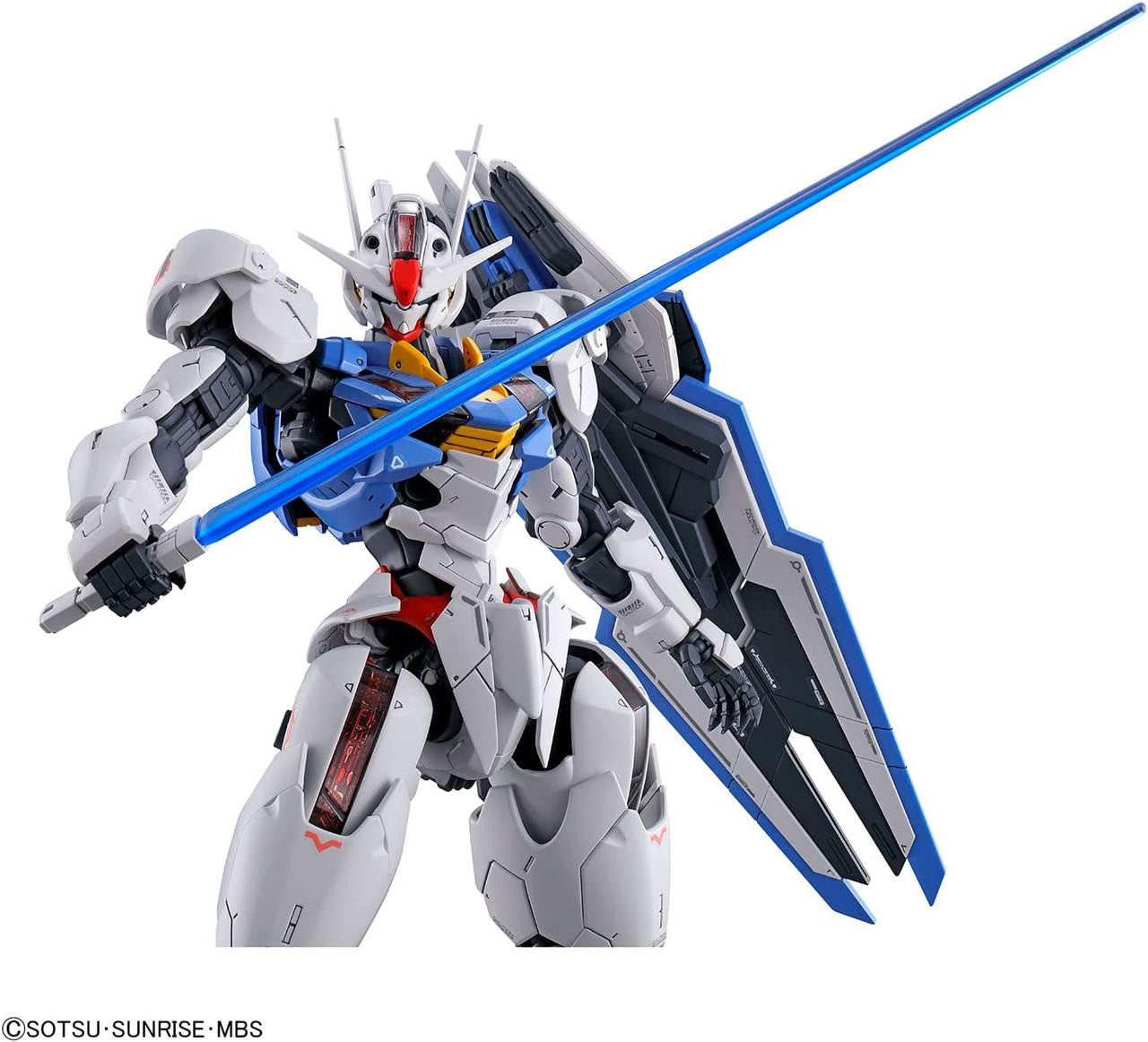

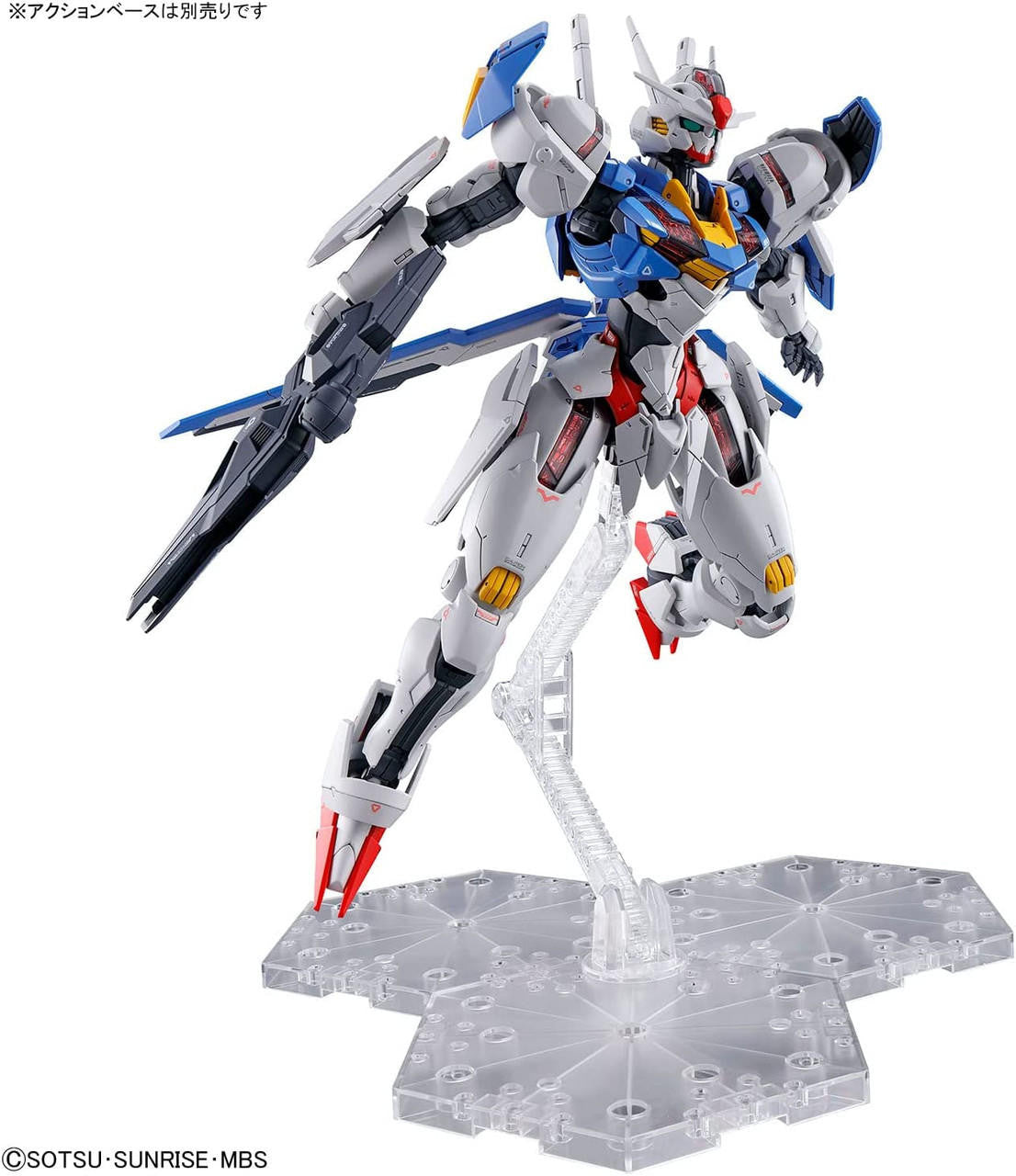

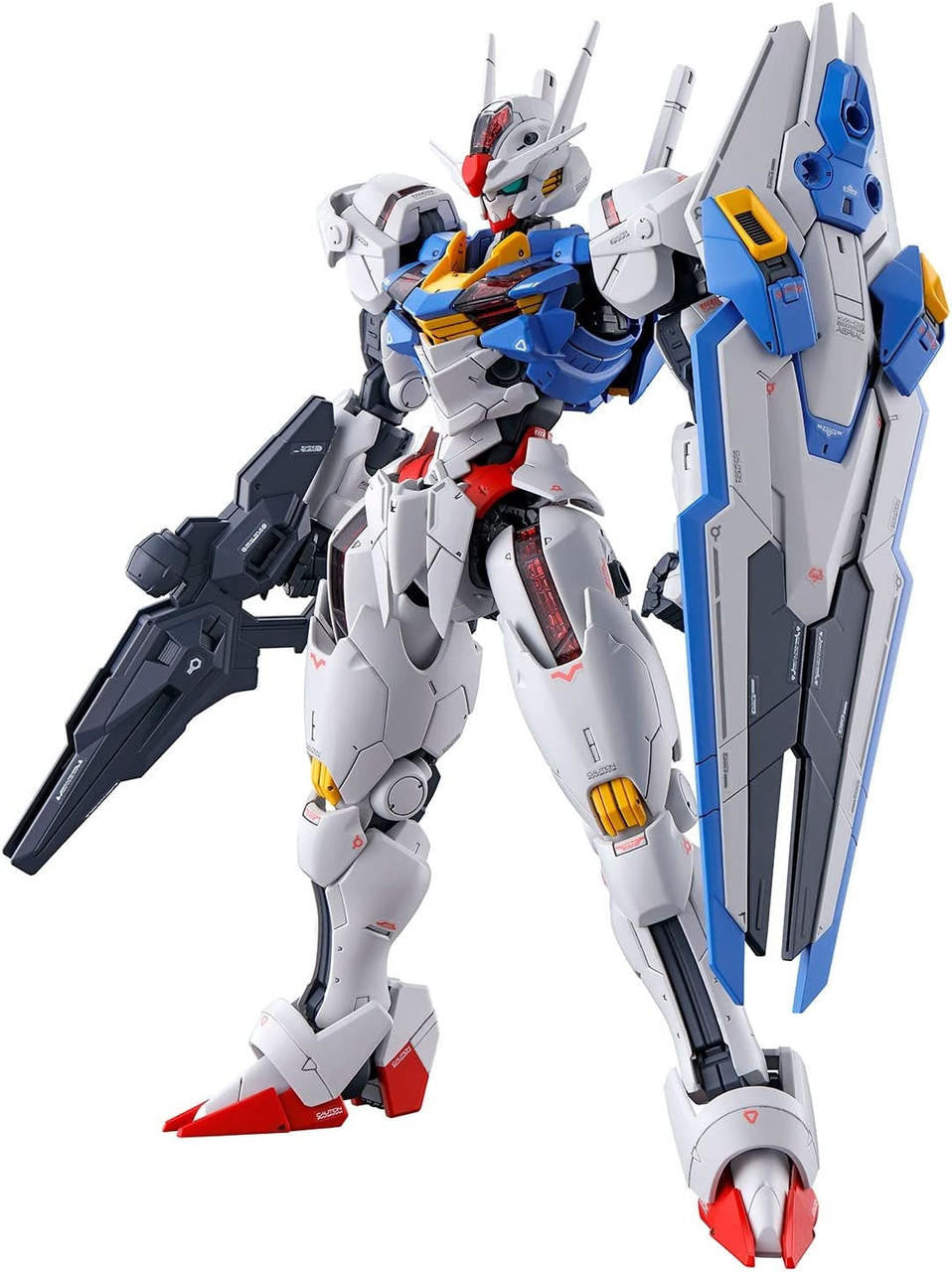

Build the Escutcheon shield, beam rifle and two beam sabers, then choose the shield or Bit-on form arrangement. The Action Base 4 and Weapon Display Bases shown in the instructions are sold separately. Bandai recommends water-based paint; the seven recipes include the sensor's Green, Emerald Green, Silver and Bright Blue blend. The red recipe prints Red madder in English and Monza Red in Japanese.

Materials in the parts list: PS: all listed runners; Red-plated PS: F3 runner; Clear blue PS: G and SB-8 runners.

Legs/waist: printed English Red madder corresponds to printed Japanese Monza Red. Sensor: printed English Bright blue corresponds to printed Japanese Indy Blue.

The original recommends water-based paint and gives named ingredients without numerical H/C product codes. The water-based AK 3GEN store products below are optional approximate candidates, not manufacturer-specified paints or physically verified matches.

Complete original painting recipes

7 printed roles use 14 distinct named ingredients. 7 roles contain mixtures; 0 use separate paint layers. Original proportions describe the source paints. Ratios for these substitute pigments are unvalidated starting points: test and adjust a small dried sample. Unquantified additions remain unquantified. Keep undercoats and topcoats separate and let each layer dry.

1. Body white: White 100% + Gray small dose.
2. Frame gray: Gray 40% + Navy Blue 40% + Purple 20% + Red small dose.
3. Body blue: Cobalt Blue 70% + White 30% + Midnight Blue small dose. Candidate recipe incomplete: Cobalt Blue has no chosen store match.
4. Joint pipe dark gray: Midnight Blue 60% + Gray 40%.
5. Body yellow: Yellow 90% + Orange Yellow 10% + Gray small dose.
6. Sensor green: Green 60% + Emerald Green 20% + Silver 15% + Bright Blue 5%. Candidate recipe incomplete: Bright Blue has no chosen store match.
7. Legs and waist red: Red madder (Japanese: Monza Red) 70% + Red 30%. Candidate recipe incomplete: Red madder (Japanese: Monza Red) has no chosen store match.

Named ingredients and optional store candidates

11 mapped purchase cards and 3 disabled ingredient references cover all 14 named ingredients. Mapped cards represent 11 unique paint variants. Source-role counts are not purchase quantities. Each selected variant is added once, even if chosen for more than one source ingredient.

1. White. Approximate candidate: 3G Acrylic White AK11001. White is a named opaque water-based candidate. Exact source formulation and dried appearance are untested. Family: AK 3rd Generation. Finish/effect: matte.
2. Gray. Approximate candidate: 3G Acrylic Neutral Grey AK11018. Neutral Grey is a generic gray approximation; it does not define the distinct named Neutral Gray source as an identical formulation. Family: AK 3rd Generation. Finish/effect: matte.
3. Navy Blue. Approximate candidate: 3G Acrylic Dark Blue AK11181. Dark Blue has a dark navy-blue chart sample. It is a hue-family approximation, distinct from the near-black Midnight Blue candidate. Family: AK 3rd Generation. Finish/effect: matte.
4. Purple. Approximate candidate: 3G Acrylic Purple AK11073. Purple is a named opaque water-based candidate. Exact source formulation and dried appearance are untested. Family: AK 3rd Generation. Finish/effect: matte.
5. Red. Approximate candidate: 3G Acrylic Matt Red AK11092. Matt Red supplies an opaque red candidate; matte describes the candidate, not a proven source finish. Family: AK 3rd Generation. Finish/effect: matte.
6. Cobalt Blue. No candidate is chosen. The available AK Cobalt Blue is metallic, while this ingredient calls for an ordinary blue.
7. Midnight Blue. Approximate candidate: 3G Acrylic Strong Dark Blue AK11187. Strong Dark Blue has a very dark, near-black blue chart sample. It is an approximation to the Midnight Blue hue, distinct from Navy Blue; no manufacturer crosswalk is claimed. Family: AK 3rd Generation. Finish/effect: matte.
8. Yellow. Approximate candidate: 3G Acrylic Yellow AK11044. Yellow is a named opaque water-based candidate. Exact source formulation and dried appearance are untested. Family: AK 3rd Generation. Finish/effect: matte.
9. Orange Yellow. Approximate candidate: 3G Acrylic Golden Yellow AK11041. Golden Yellow supplies a warm yellow-orange approximation, distinct from Orange and Yellow. Family: AK 3rd Generation. Finish/effect: matte.
10. Green. Approximate candidate: 3G Acrylic Deep Green AK11142. Deep Green supplies a generic opaque green approximation, separate from the Dark Green and special named green ingredients. Family: AK 3rd Generation. Finish/effect: matte.
11. Emerald Green. Approximate candidate: 3G Acrylic Emerald AK11144. Emerald is the standard opaque green candidate. The separately sold Emerald Metallic Green is expressly rejected for this ordinary color. Family: AK 3rd Generation. Finish/effect: matte.
12. Silver. Approximate candidate: 3G Acrylic Silver AK11209. Silver is a named metallic water-based candidate. Exact source formulation and dried appearance are untested. Family: AK 3rd Generation. Finish/effect: metallic.
13. Bright Blue. No candidate is chosen for the original Bright blue / Indy Blue shade. The available Deep Sky Blue sample is light cyan.
14. Red madder (Japanese: Monza Red). No supported candidate is chosen for the original Red madder / Monza Red shade.

Optional supplies are recommendations for the tasks described above, not manufacturer-required purchases. The AK 3GEN thinner applies only to the AK 3GEN candidates. Do not paint materials the original warns against painting. Digital color squares are browsing aids; they do not prove dried color, pigment strength, sheen, metallic reflection, transparency or a successful mixture.

View this exact kit.
